Although the patent shows the technology on a relatively unspectacular CBR250RR – a sporty parallel twin model for the Asian market – the target market is clearly racing. The system could bring advantages in the future, especially in MotoGP, where riders sometimes deliberately stay behind their opponents in order to increase tire pressure through their hot exhaust gases.
Background: Tire pressure as a strategic challenge in MotoGP
In MotoGP, tire pressure is now monitored continuously. To avoid dangerously low pressure values, the association has introduced mandatory minimum values. However, this regulation has its pitfalls: if a rider drives too long with too low pressure – for example, because the tire is not getting enough heat – sanctions may be imposed.
This poses a particular problem for front-runners. They ride in what is known as “free” airflow, without the hot exhaust gases from other machines. This keeps the front tire cooler, the pressure drops – and the rider risks breaking the rules. As a result, some riders deliberately drop back in order to increase tire pressure through the heat of the rider in front.
Honda’s solution: decoupling brake and tire temperature
The new patent does not address airflow, but another source of heat: the brake system. The idea is that a redesigned brake disc and rim will allow less heat from the brake system to reach the tires.

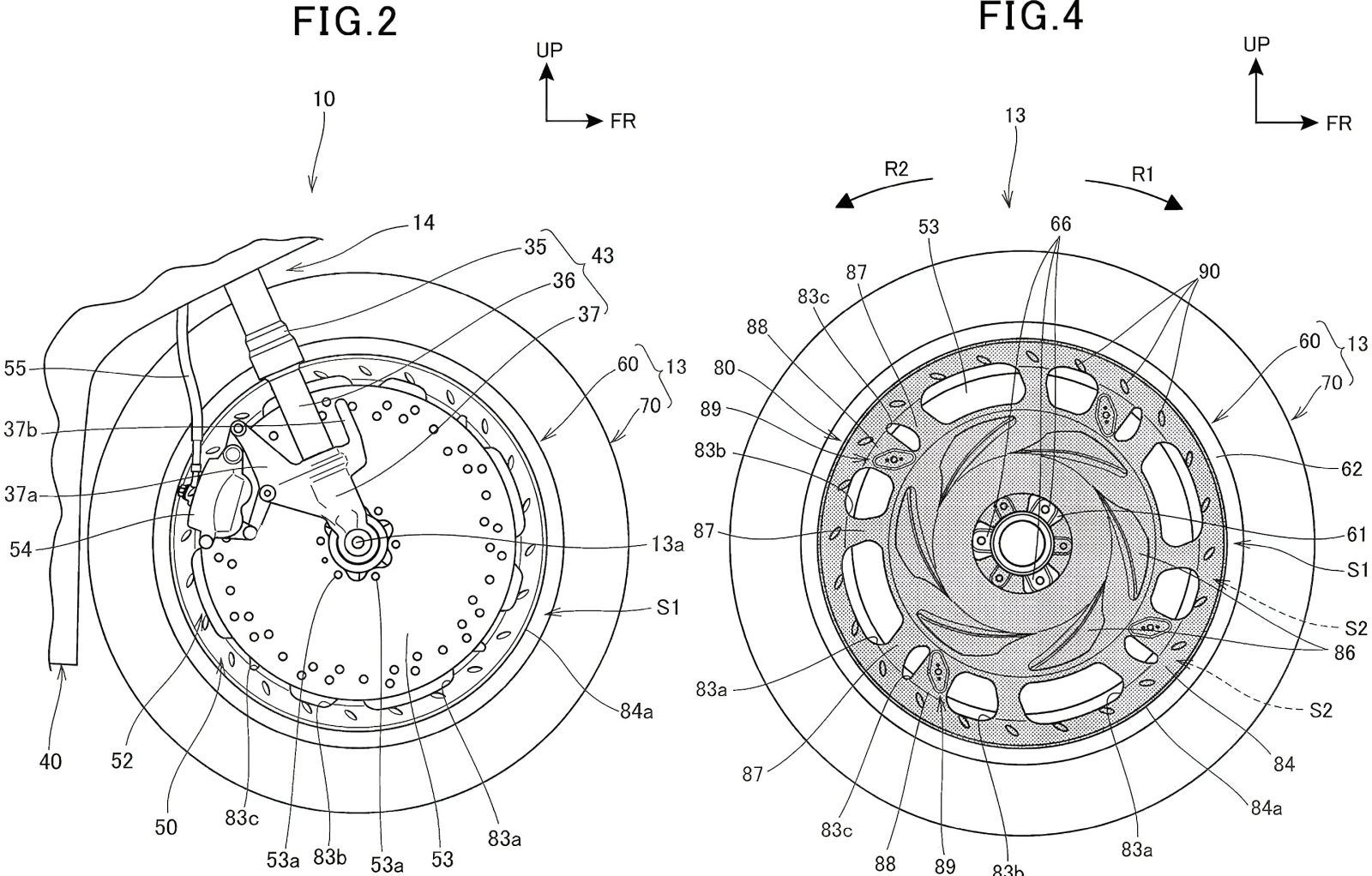

Specifically, this involves a large brake disc that extends to the wheel hub. Only the outer edge is gripped by the brake calipers, as in conventional systems. The center of the disc serves as an additional heat reservoir and is designed to distribute the heat more evenly.
An aerodynamically designed wheel cover is located between the brake disc and the spokes. This cover has two functions: the side facing the disc is equipped with lamella-like structures designed to dissipate heat. At the same time, small elevations ensure that an air gap is maintained between the wheel cover and the rim. This significantly reduces heat transfer to the rim and thus indirectly to the tire.
Potential for racing and beyond
Although the patent is not explicitly intended for MotoGP, it offers particularly promising potential there. Mechanics could work with slightly higher starting pressure, as the brake system has less influence on the overall heat input. This, in turn, would make it easier to maintain the minimum pressure requirements consistently.
But there are also advantages beyond the racetrack: A tire that receives less heat from the brakes could have a longer service life and more consistent handling. This also makes the system interesting for powerful production motorcycles with sporty aspirations.
Technical context: CBR250RR as a test platform
The use of the Honda CBR250RR in the patent document is purely symbolic. According to the information provided, important components such as the relatively small, axially mounted brake calipers are not relevant to the functioning of the patent. Rather, the model serves as a carrier platform for the principle of the new design.
Material specifications for the brake disc are missing from the document, but in racing, carbon would most likely be used instead of steel. The exact choice of materials is likely to vary depending on the area of application.
