103 hp / 75.8 kW
Power
171 Nm
Torque
577 kg
Weight
1,923 ccm
Displacement
€ 52,995
Price (DE)

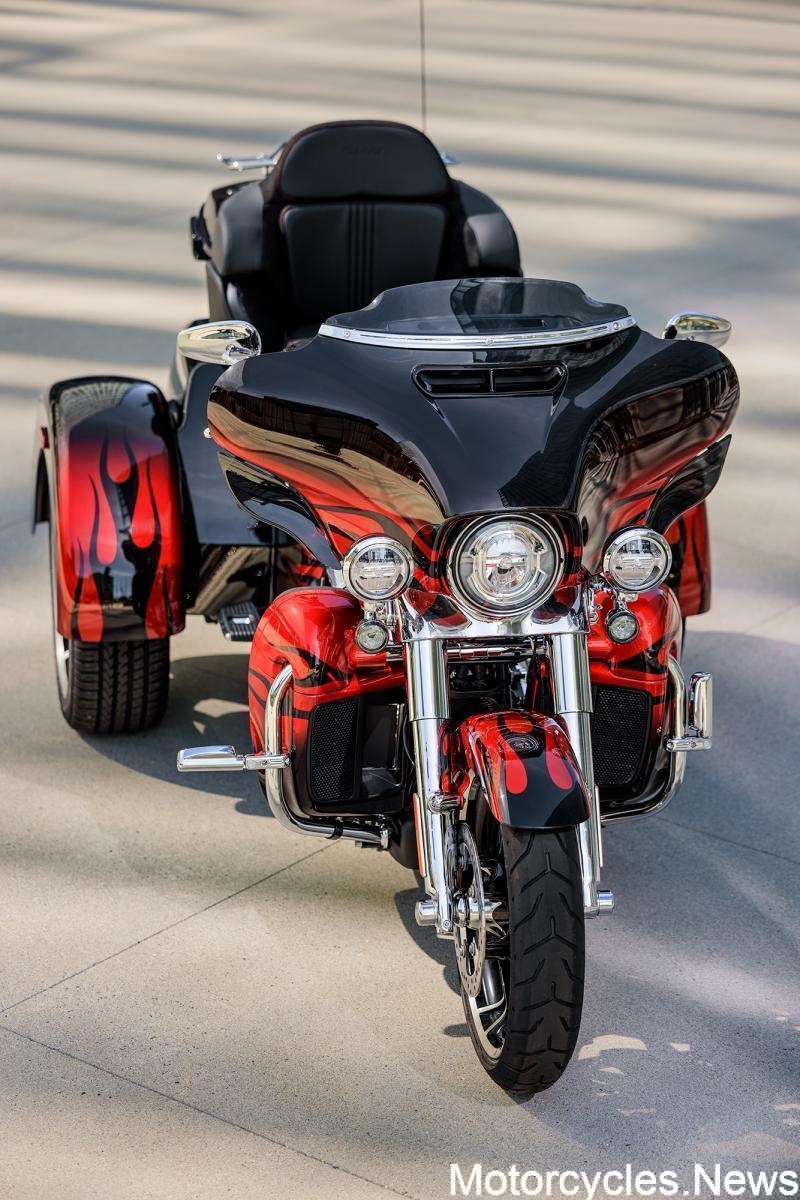

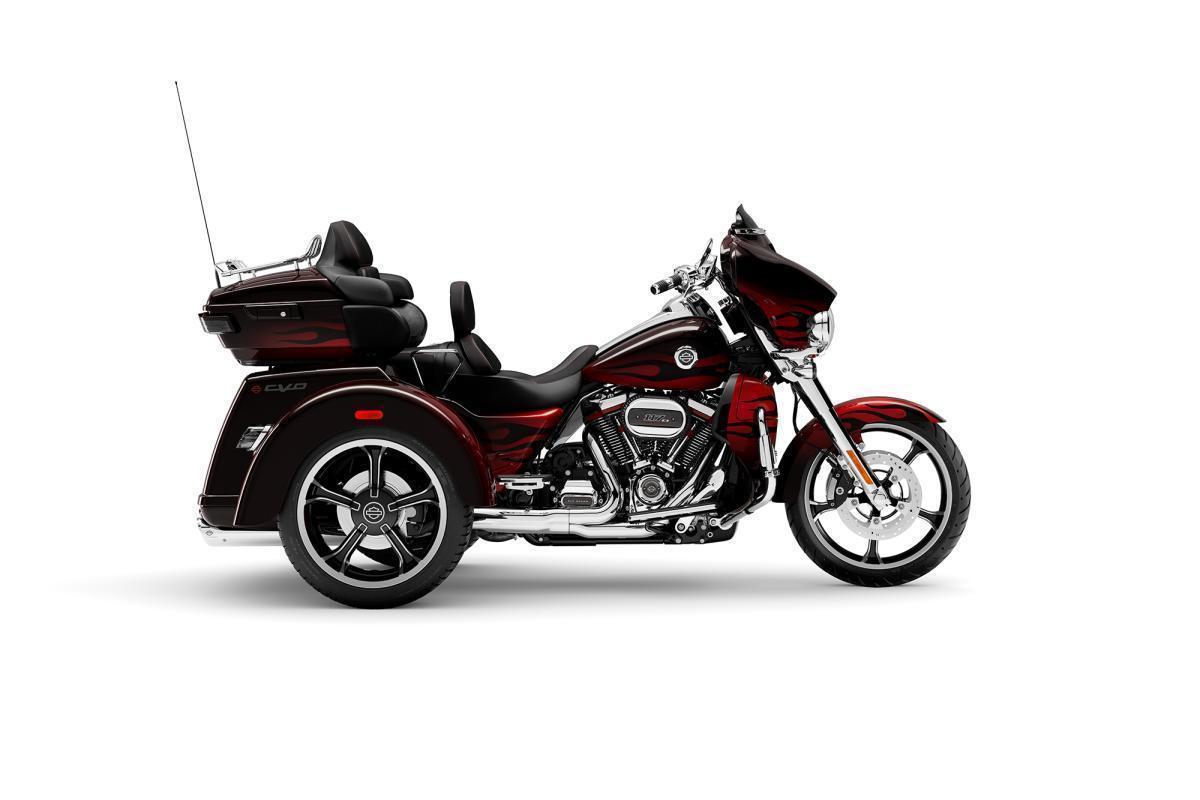

The 2022 CVO Tri Glide is Harley-Davidson's premium trike featuring the Milwaukee-Eight 117 engine, reverse gear, rear air suspension and full BOOM! Box GTS infotainment system.
Model Details
| Lifecycle | current |
Model Info
| Vehicle Type | street |
| Target Audience | Trike riders, comfort-oriented touring riders, collectors |
Engine & Performance

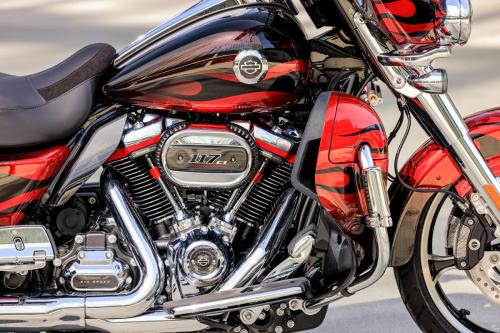

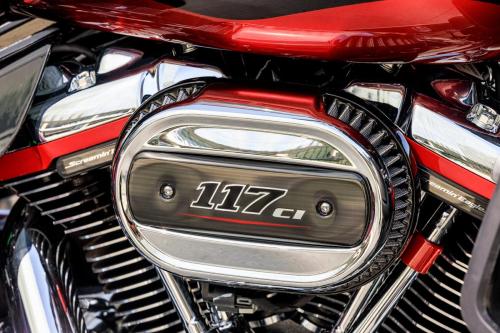

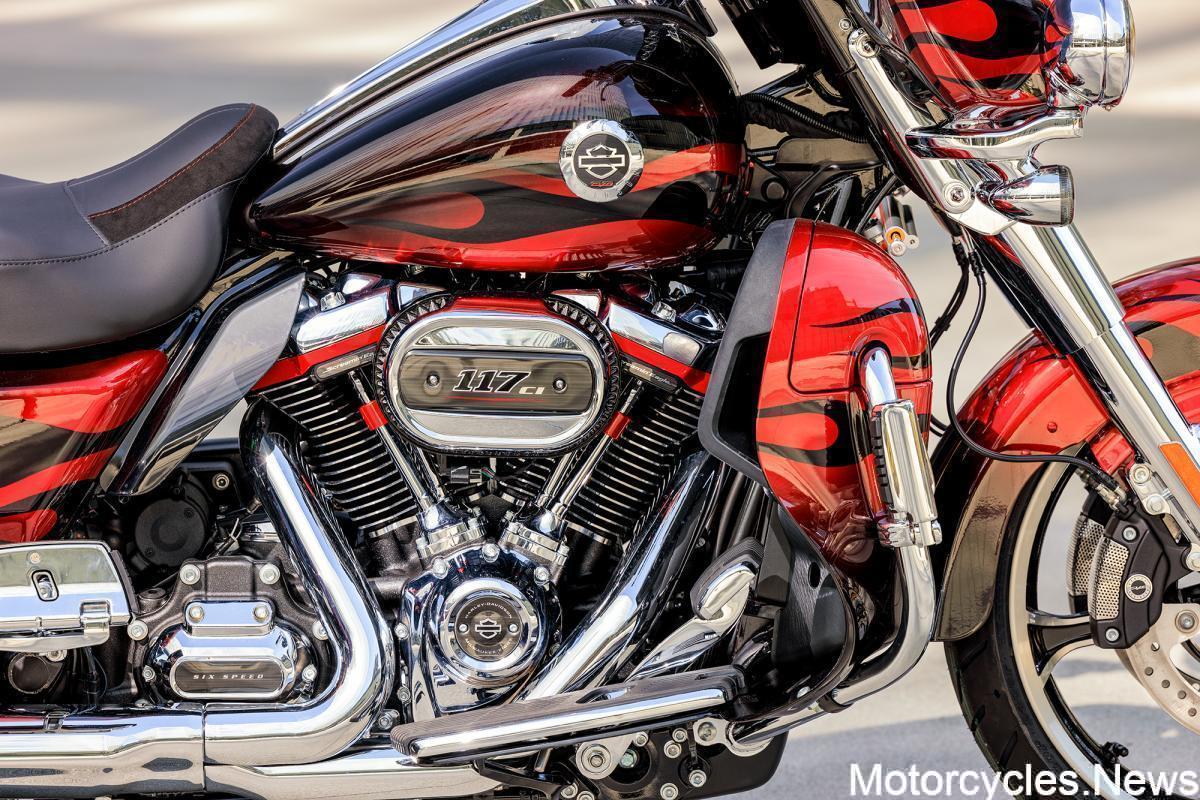

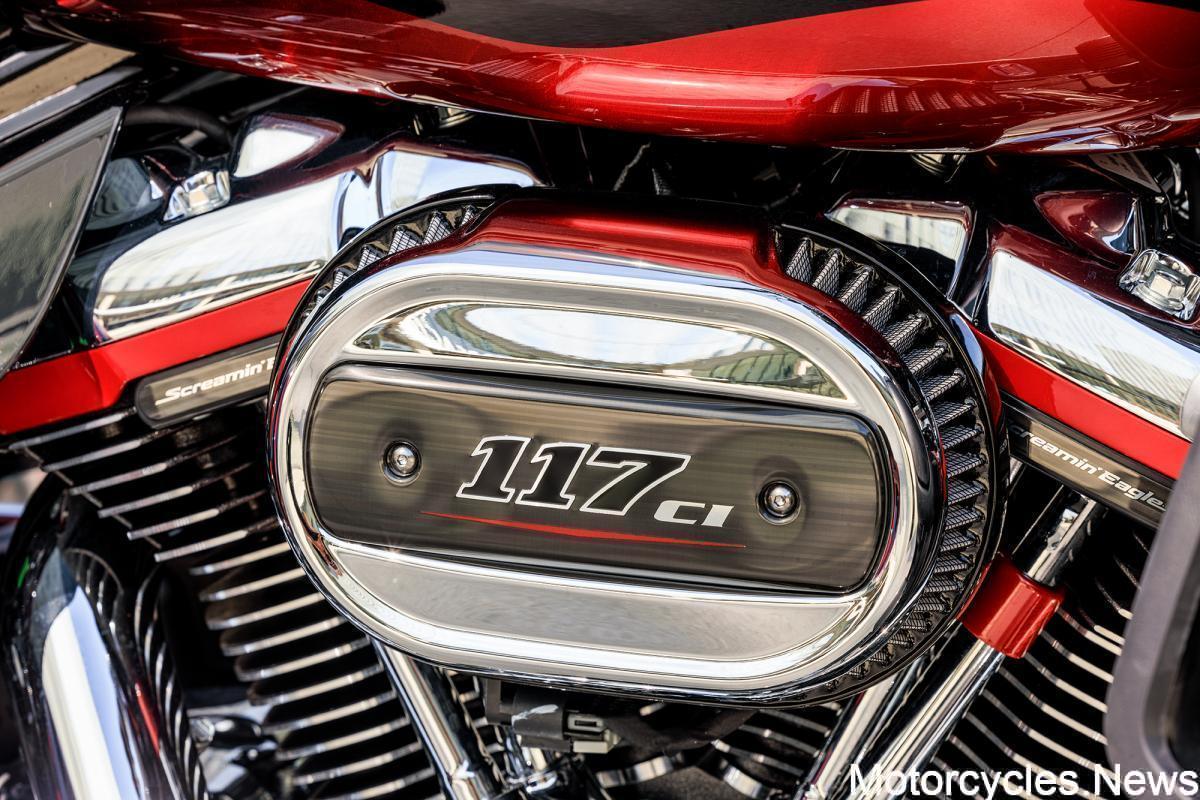

| Engine Type | Milwaukee-Eight 117, V-Twin, air/oil-cooled, OHV, 4 valves/cyl. |
| Cylinders | 2 |
| Displacement | 1,923 ccm |
| Bore x Stroke | 103,6 x 114,3 mm |
| Compression Ratio | 10,2:1 |
| Power | 103 hp |
| Power (kW) | 75.8 kW |
| Power at RPM | 3,750 rpm |
| Torque | 171 Nm |
| Torque at RPM | 3,750 rpm |
| Fuel System | Electronic fuel injection |
| Cooling | Air/oil cooling |
| Emission Standard | Euro 5 |
Drivetrain
| Transmission | 6-speed with reverse |
| Final Drive | Belt |
| Clutch | Multi-plate wet clutch, slipper |
Performance
| Power-to-Weight | 0.2 hp/kg |
Chassis & Suspension
| Frame Type | Steel tubular frame |
| Front Fork | Telescopic fork |
| Fork Brand | Showa Dual Bending Valve |
| Fork Diameter | 49 mm |
| Front Travel | 117 mm |
| Rear Shock | Air suspension |
Brakes
| Front Disc Count | 2 |
| Front Disc Size | 300 mm |
| Front Caliper | 4-piston |
| Rear Disc Size | 300 mm |
| Rear Caliper | 2-piston |
| ABS | Yes |
| ABS Type | ABS |
Dimensions & Weight
| Seat Height | 658 mm |
| Wet Weight | 577 kg |
| Fuel Capacity | 22.7 L |
Tires & Wheels
| Front Tire | 130/60 B19 |
| Rear Tire | 205/65 R15 (Trike-Hinterräder) |
Electronics & Rider Aids
| Riding Modes | Yes |
| Mode Count | 3 |
| Mode Names | Tour, Sport, Rain |
| Traction Control | Yes |
| TC Deactivatable | Yes |
| Cruise Control | Yes |
| Quickshifter | No |
Display & Connectivity

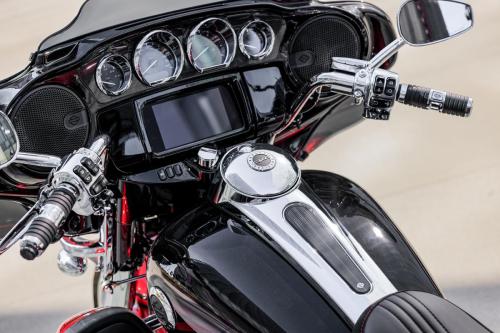

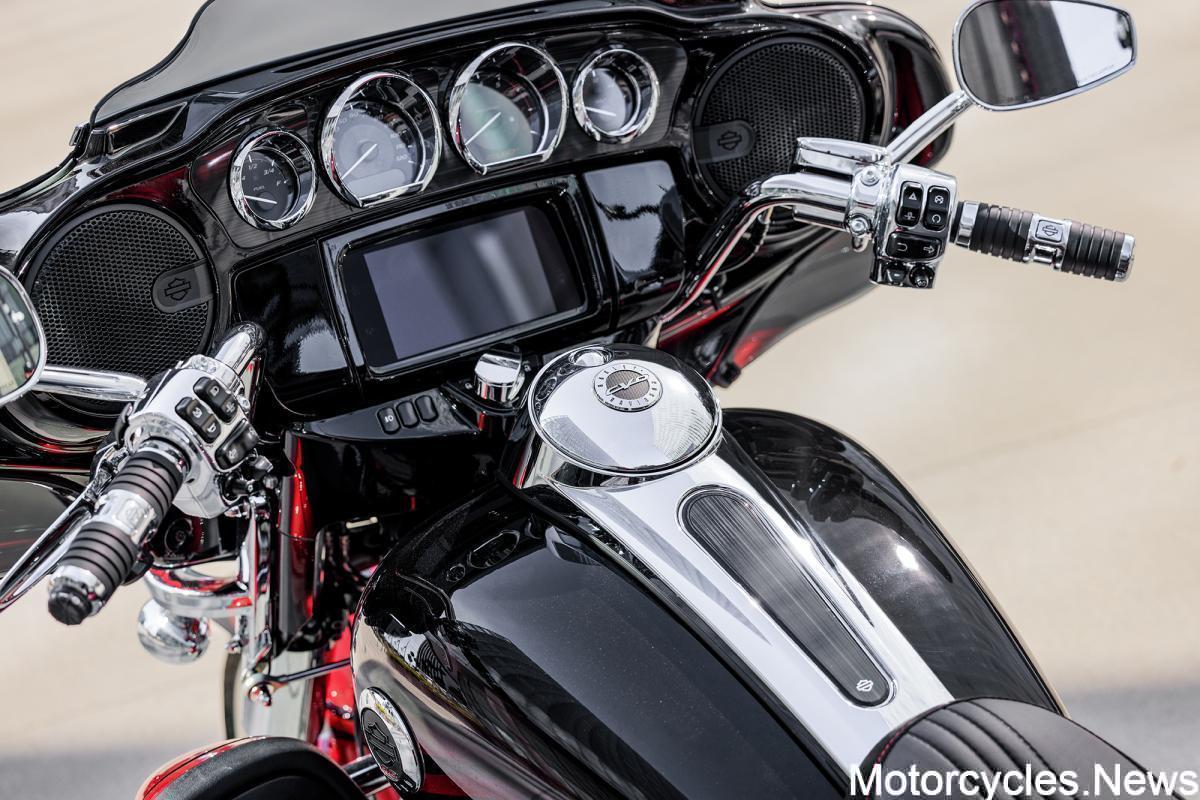

| Display | TFT |
| Display Size | 6.5 " |
| Connectivity | Bluetooth, Apple CarPlay |
| Keyless | Yes |
Lighting
| Headlight | LED |
| DRL | Yes |
Price & Availability
| Price Germany | 52,995 € |
| Price per HP | 515 €/hp |
| Market Launch | 2,022 |
| Colors | Dark Platinum / Pewter Pearl, Carbon Silver / Black Licorice Pearl |
| A2 Compatible | No |
Strengths & Weaknesses
Strengths
- Premium trike, reverse gear, air suspension, CVO equipment, ample storage
Weaknesses
- Extremely high weight, very high price, no lean angle possible
