136 hp / 100 kW
Power
143 Nm
Torque
236 kg
Weight
1,254 ccm
Displacement
€ 17,550
Price (DE)

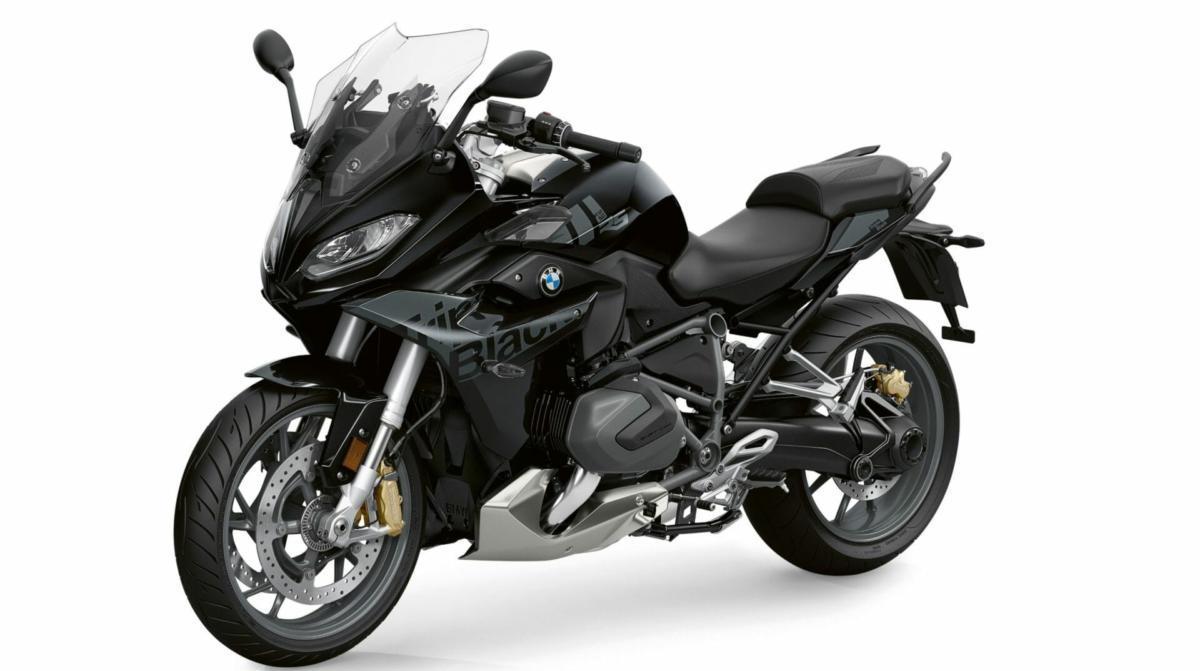

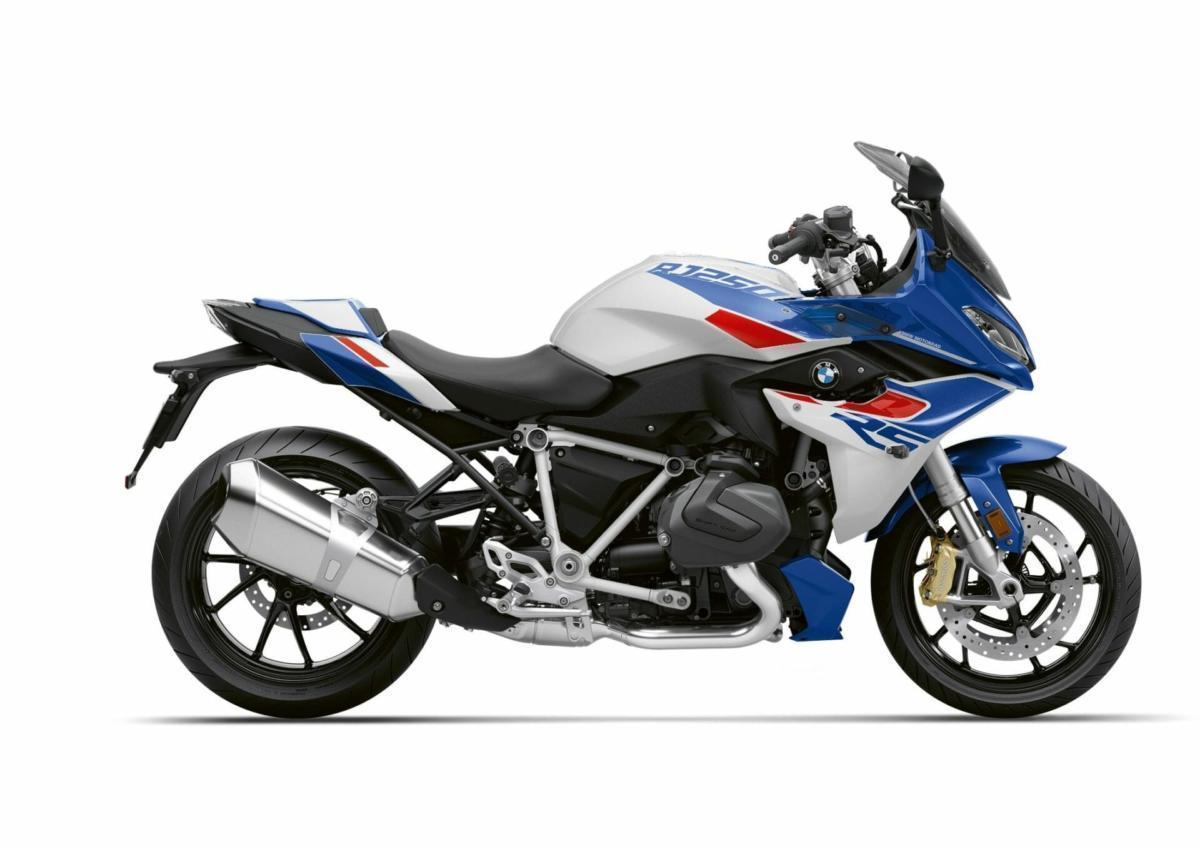

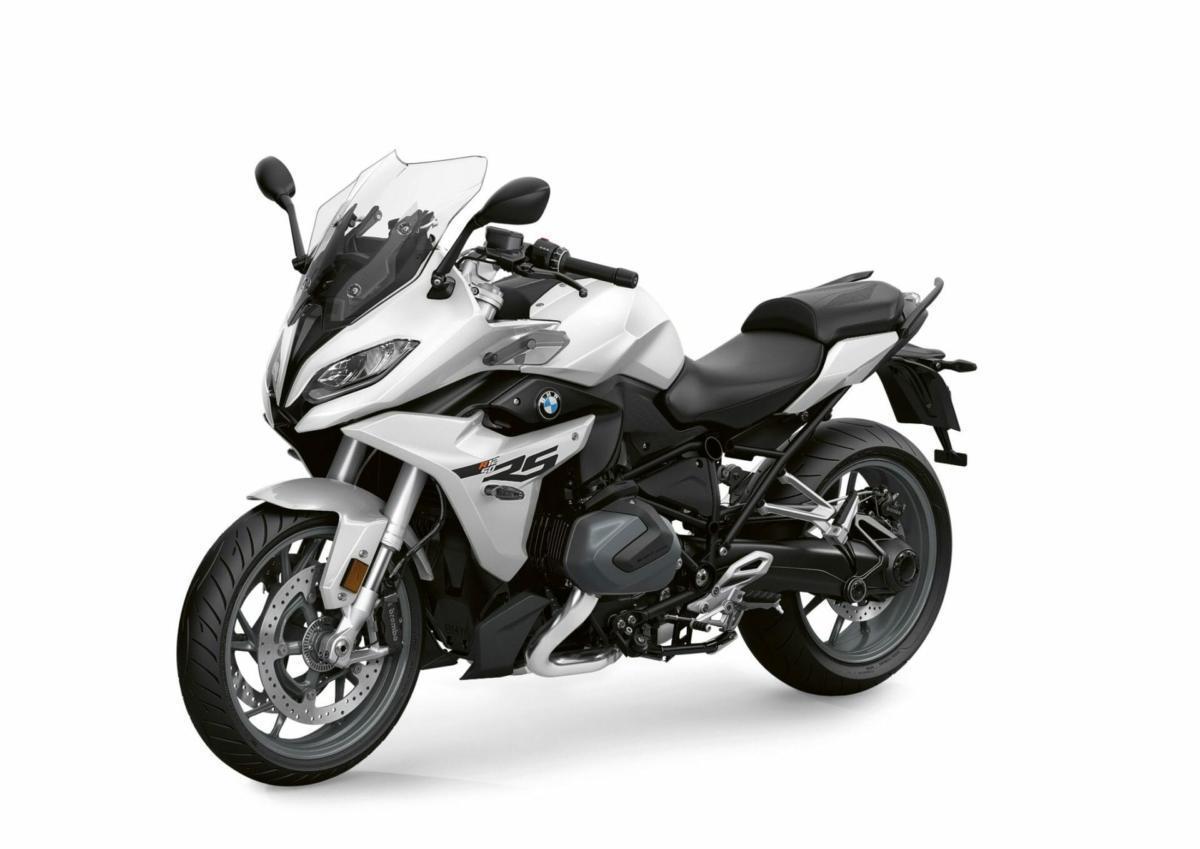

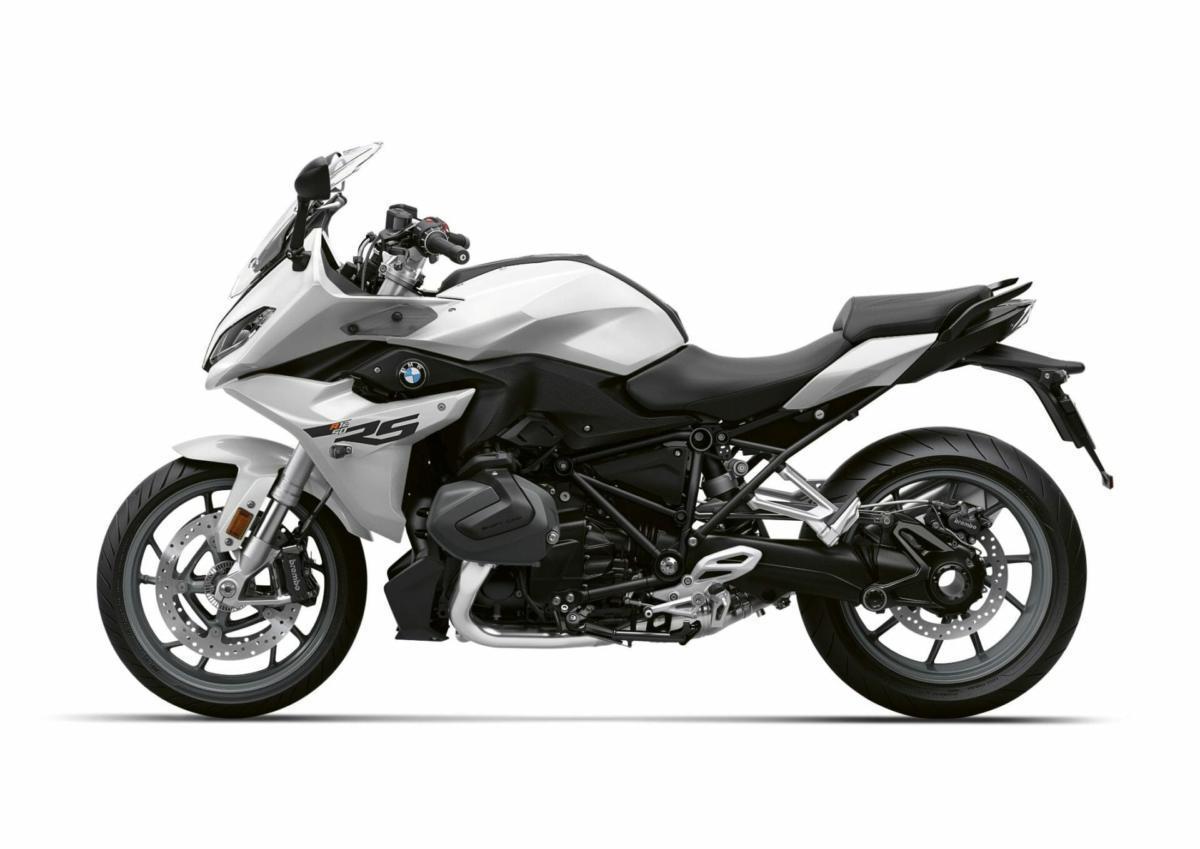

Sporty boxer tourer with 136 hp ShiftCam technology, athletic riding position and comfortable long-distance capability.
Model Details
| Lifecycle | current |
Video
Model Info
| Vehicle Type | street |
| Target Audience | Sport tourers, ambitious road riders |
Engine & Performance
| Engine Type | Flat twin boxer, liquid-cooled, DOHC, 4 valves/cyl., BMW ShiftCam |
| Cylinders | 2 |
| Displacement | 1,254 ccm |
| Bore x Stroke | 102,5 x 76,0 mm |
| Compression Ratio | 12,5:1 |
| Power | 136 hp |
| Power (kW) | 100 kW |
| Power at RPM | 7,750 rpm |
| Torque | 143 Nm |
| Torque at RPM | 6,250 rpm |
| Fuel System | Electronic fuel injection BMS-X |
| Cooling | Liquid cooling |
| Emission Standard | Euro 5 |
Drivetrain
| Transmission | 6-speed |
| Final Drive | Shaft drive |
| Clutch | Multi-plate wet clutch, slipper |
Performance
| Fuel Consumption | 4.8 l/100km |
| Range | 379 km |
| Power-to-Weight | 0.6 hp/kg |
Chassis & Suspension
| Frame Type | Steel tubular bridge frame |
| Front Fork | USD telescopic fork |
| Fork Brand | BMW |
| Fork Diameter | 45 mm |
| Front Travel | 140 mm |
| Front Suspension Adj. | Electronic (Dynamic ESA) |
| Rear Shock | Central monoshock |
| Shock Brand | BMW |
| Rear Travel | 140 mm |
| Rear Suspension Adj. | Electronic (Dynamic ESA) |
| Electronic Suspension | Yes |
| E-Suspension Type | Dynamic ESA (Electronic Suspension Adjustment) |

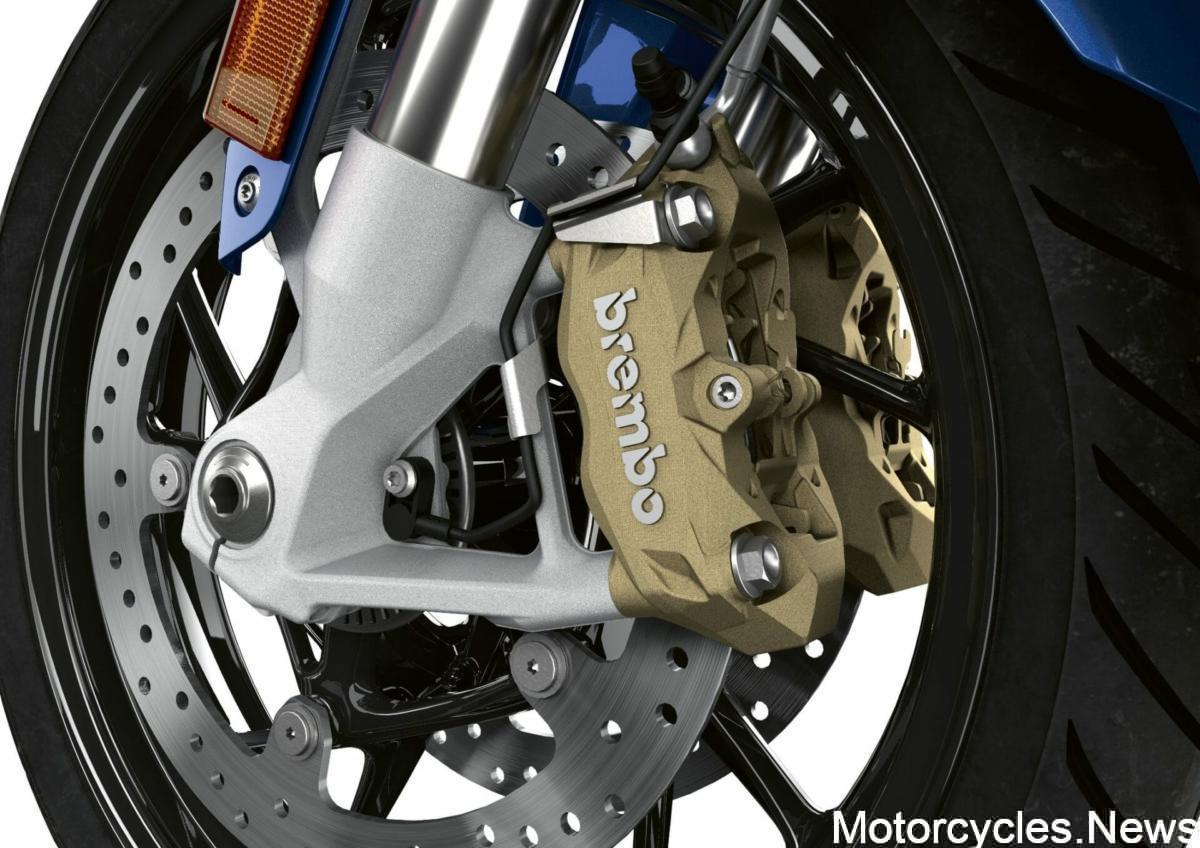

Brakes
| Front Disc Count | 2 |
| Front Disc Size | 320 mm |
| Front Caliper | 4-piston radial |
| Rear Disc Size | 276 mm |
| Rear Caliper | 2-piston floating |
| ABS | Yes |
| ABS Type | BMW Integral ABS Pro |
| IMU | Yes |
| IMU Type | 6-axis |
Dimensions & Weight

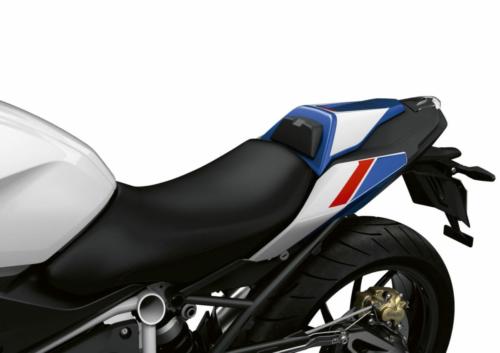

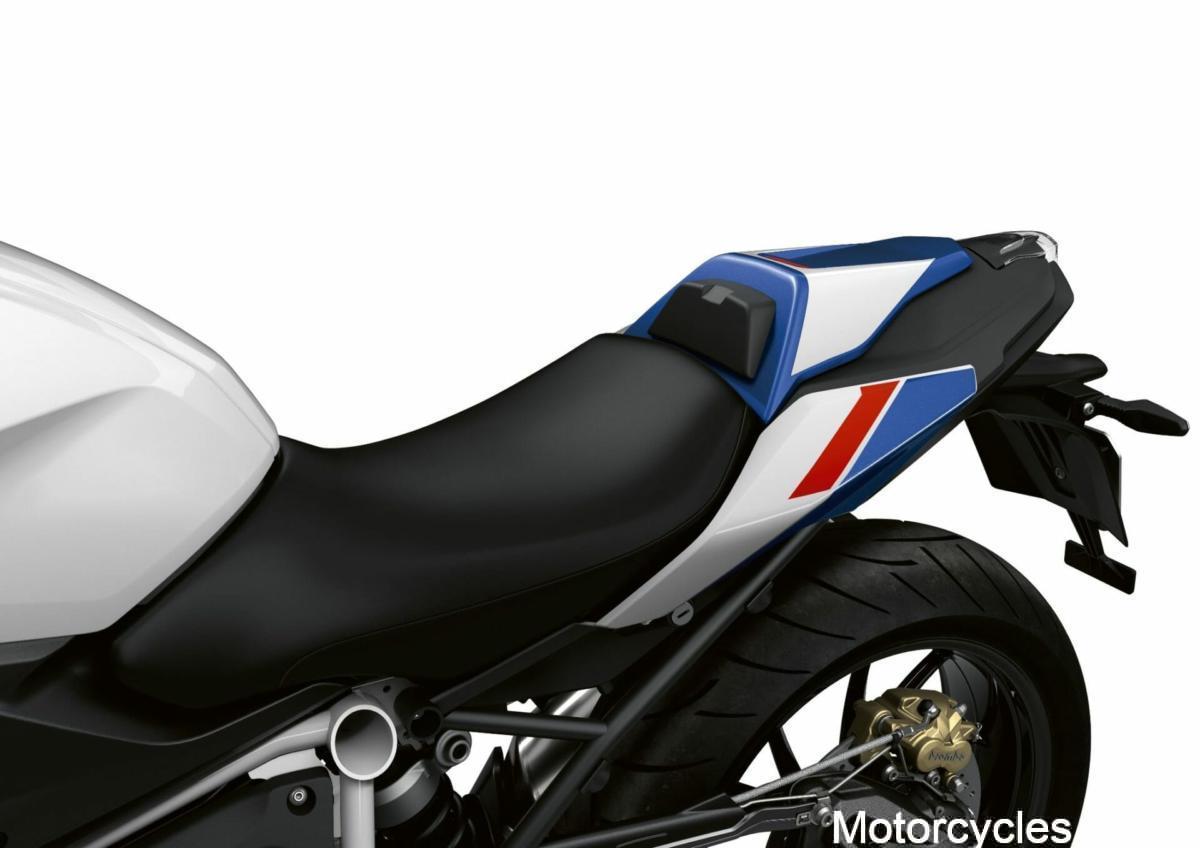

| Seat Height | 820 mm |
| Wheelbase | 1,527 mm |
| Wet Weight | 236 kg |
| Fuel Capacity | 18 L |
Tires & Wheels
| Front Tire | 120/70 ZR17 |
| Rear Tire | 180/55 ZR17 |
Electronics & Rider Aids
| Riding Modes | Yes |
| Mode Count | 3 |
| Mode Names | Rain, Road, Dynamic |
| Custom Modes | Yes |
| Traction Control | Yes |
| TC IMU-based | Yes |
| TC Deactivatable | Yes |
| Cruise Control | Yes |
| Quickshifter | Option |
| QS Direction | Up & Down |
Display & Connectivity

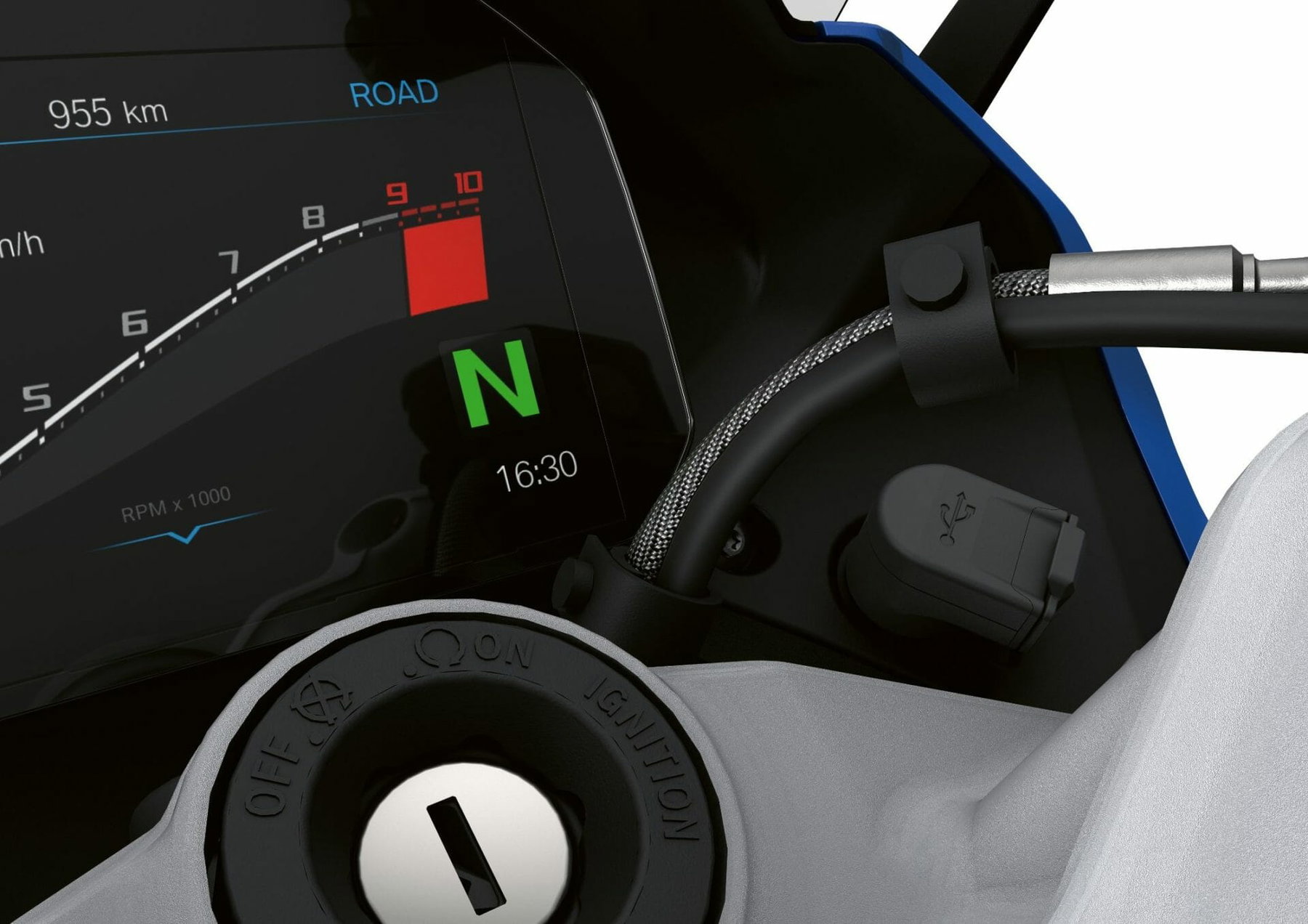

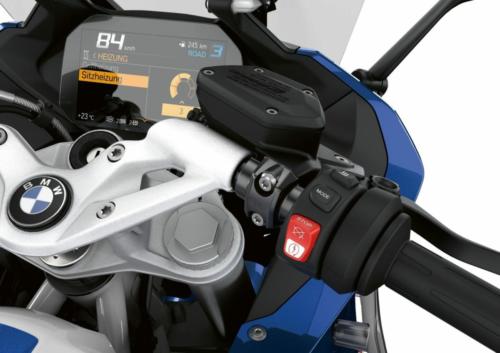

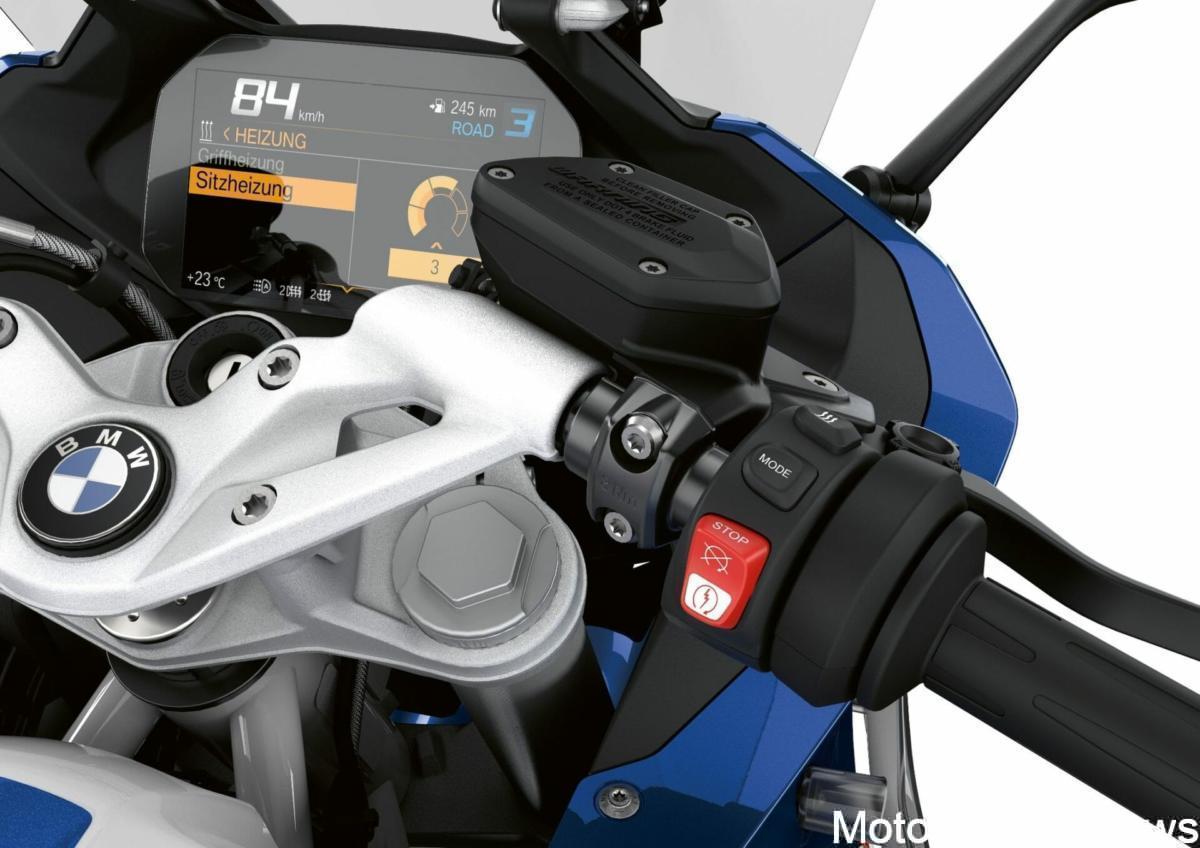

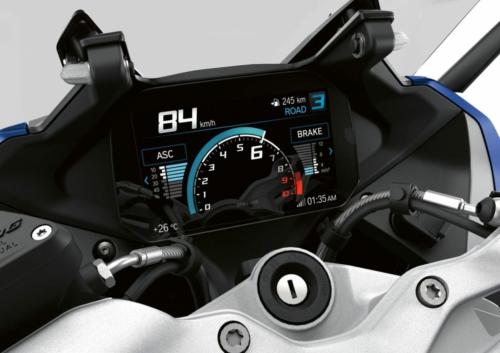

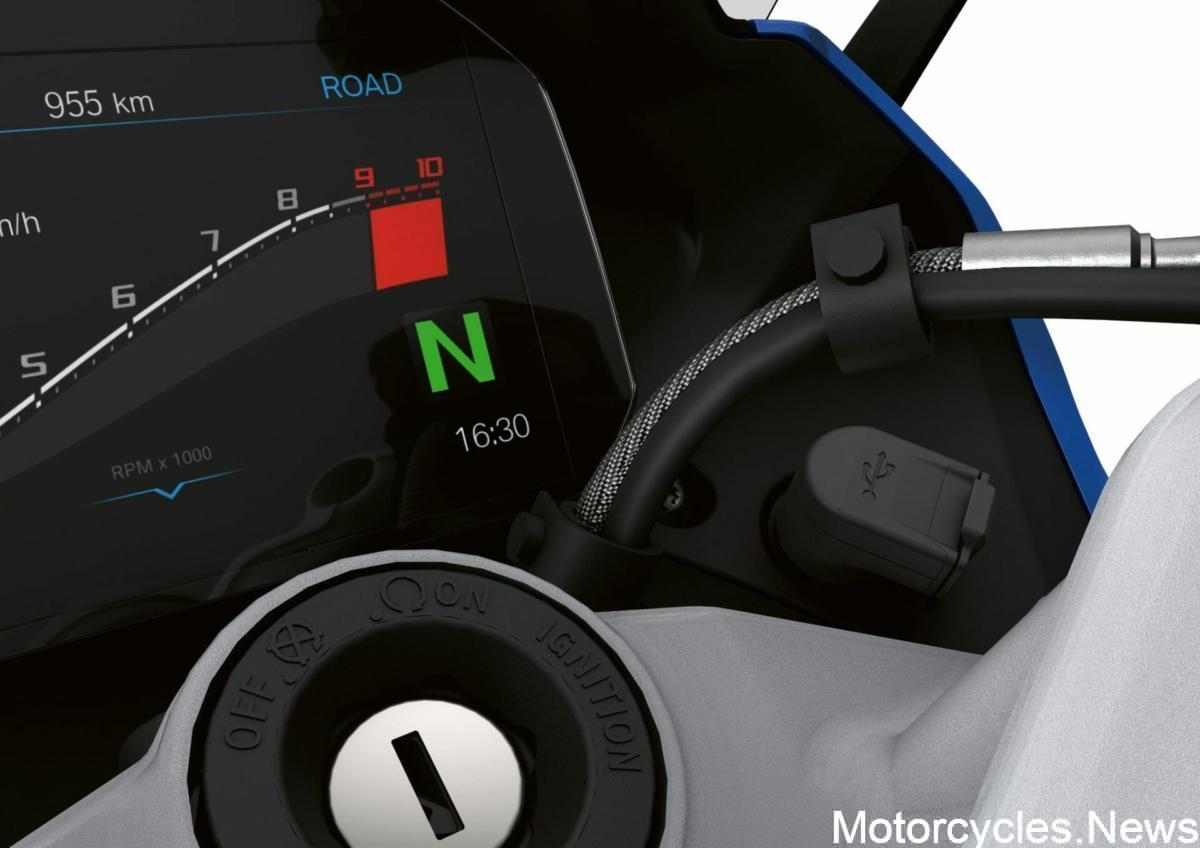

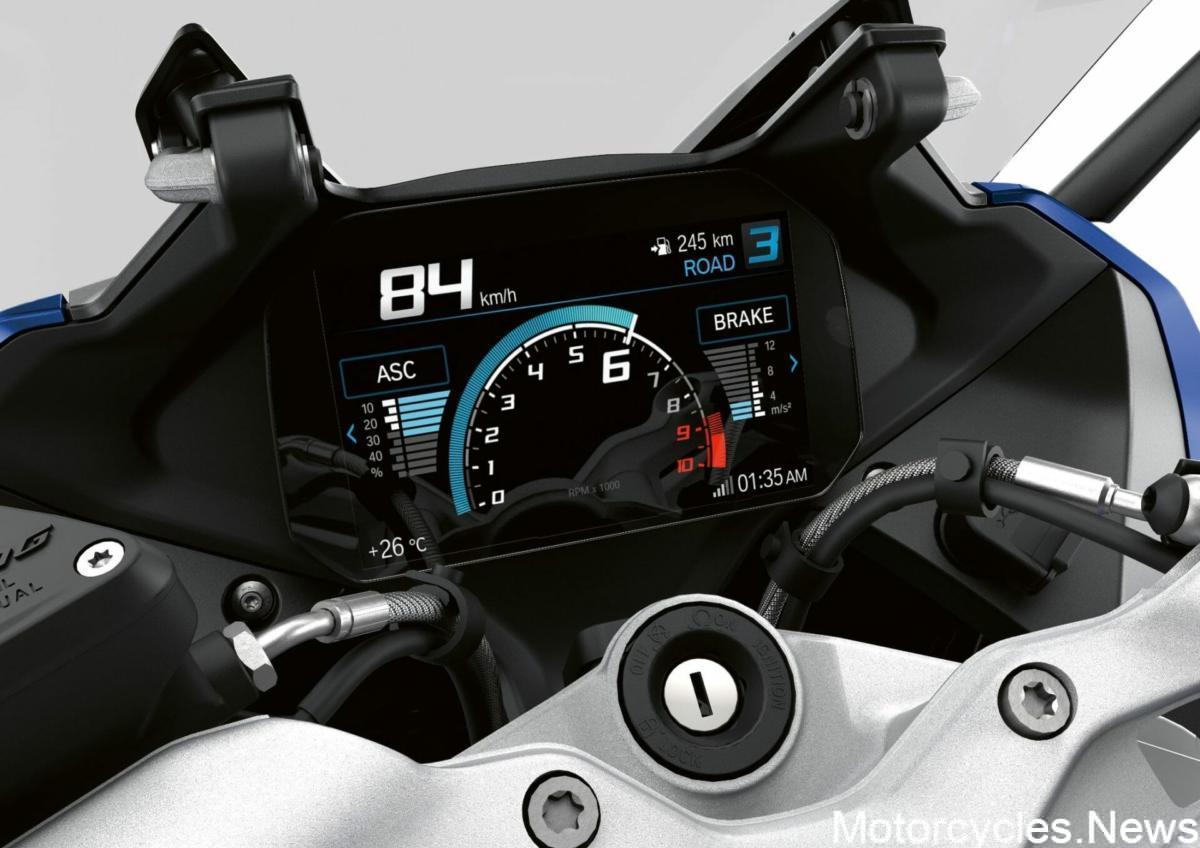

| Display | TFT |
| Display Size | 6.5 " |
| Smartphone Mirroring | yes |
| Connectivity | Bluetooth |
| Keyless | Yes |
Lighting

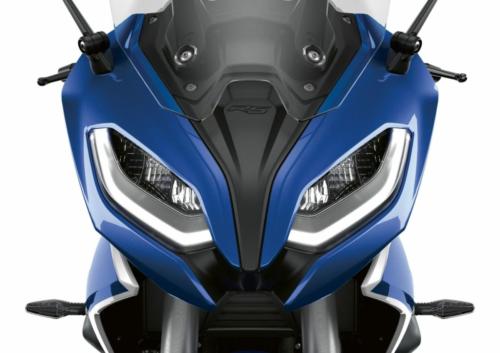

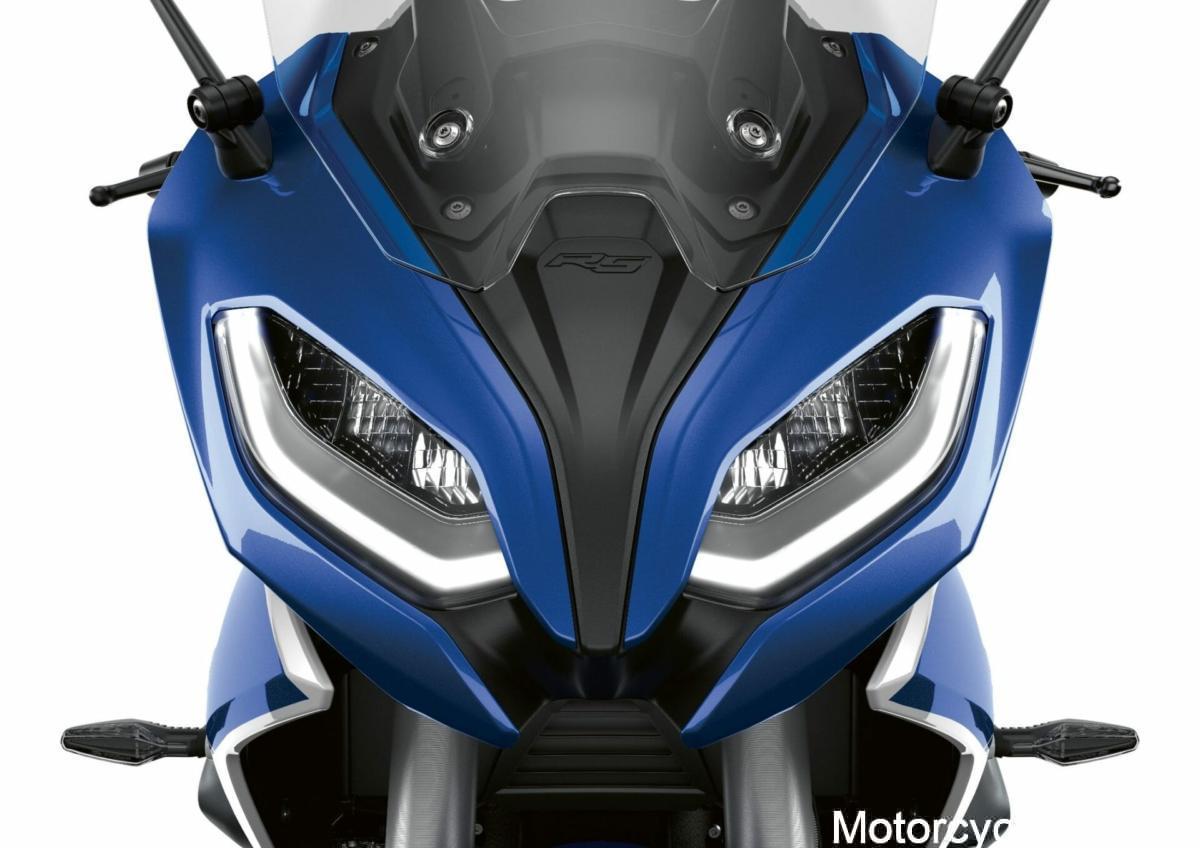

| Headlight | LED |
| DRL | Yes |
Price & Availability
| Price Germany | 17,550 € |
| Price per HP | 129 €/hp |
| Market Launch | 2,023 |

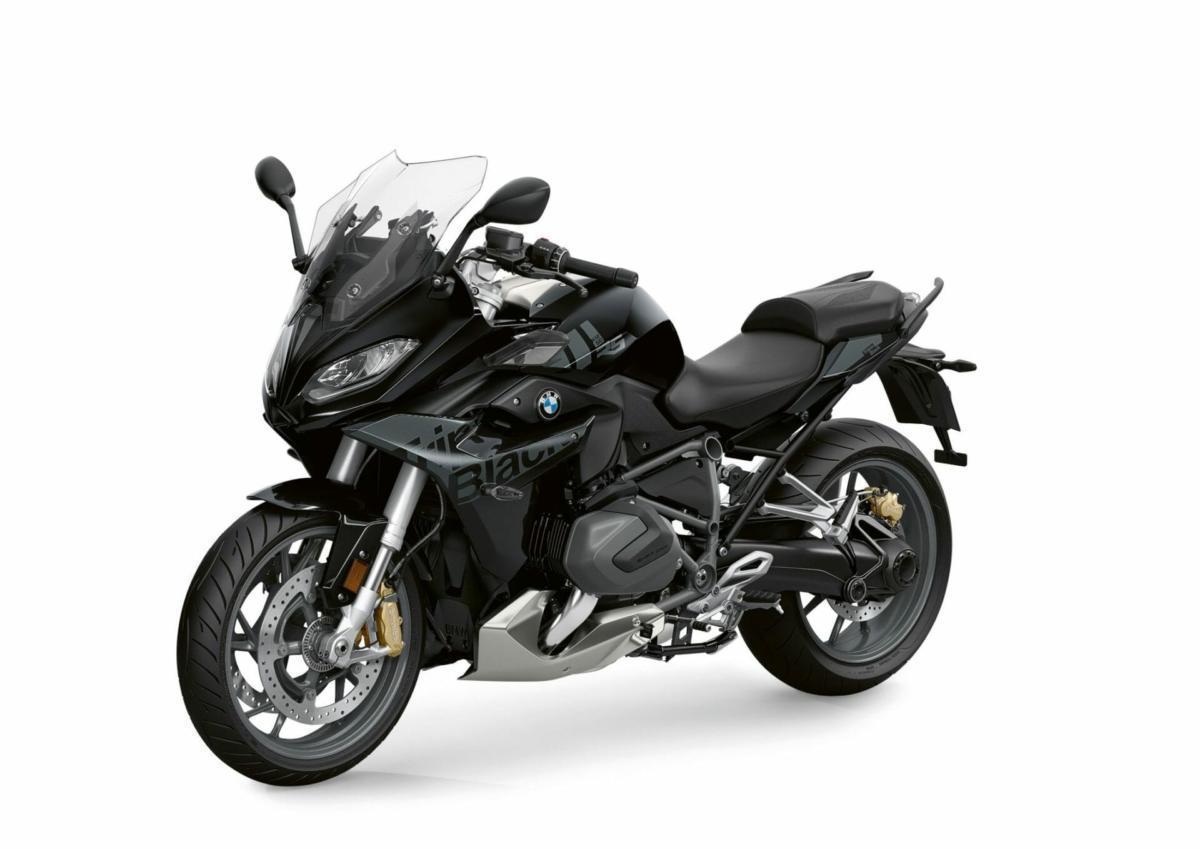

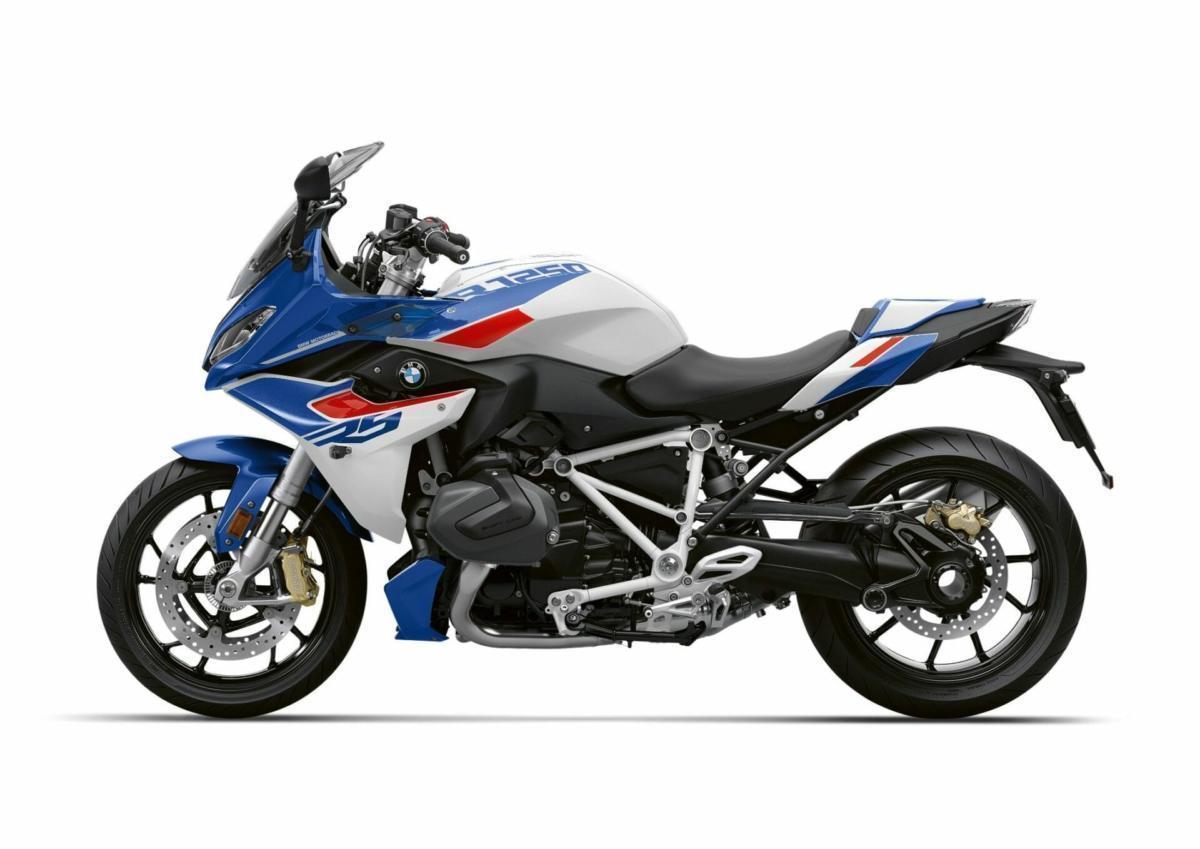

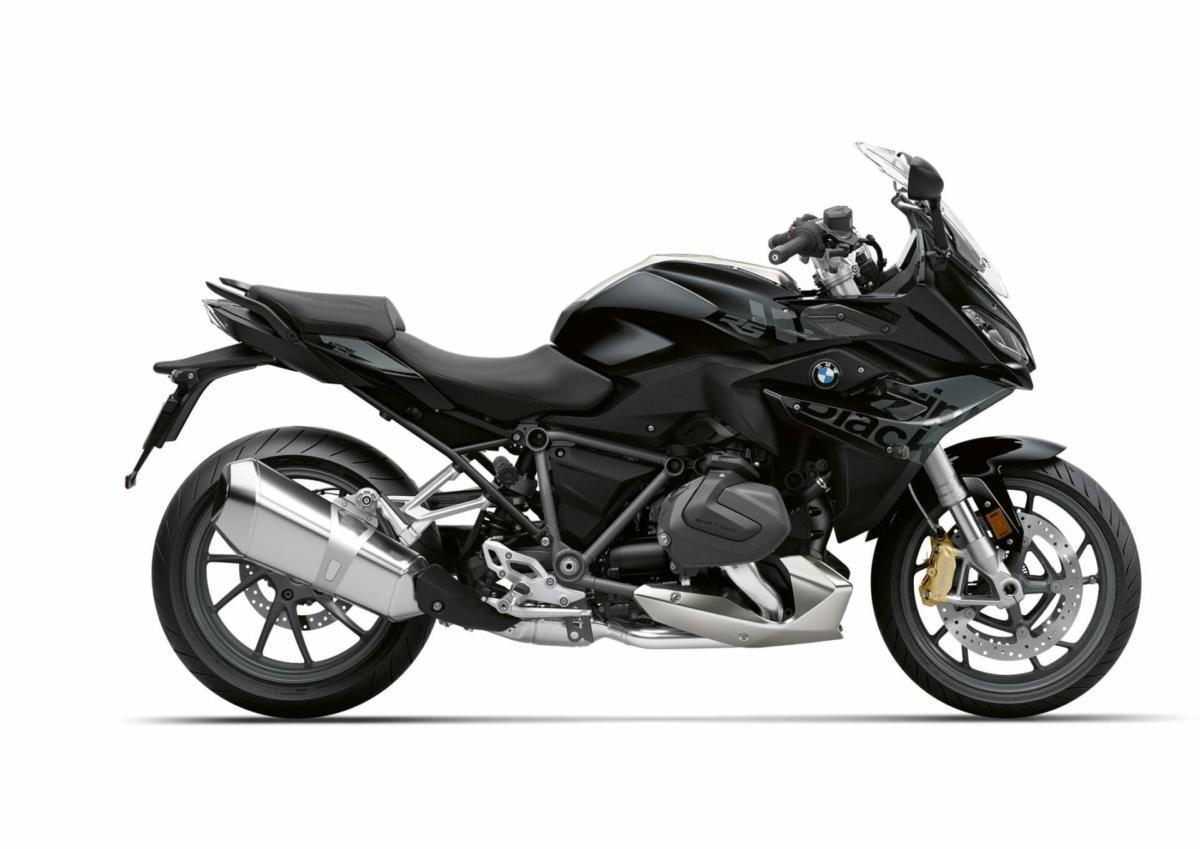

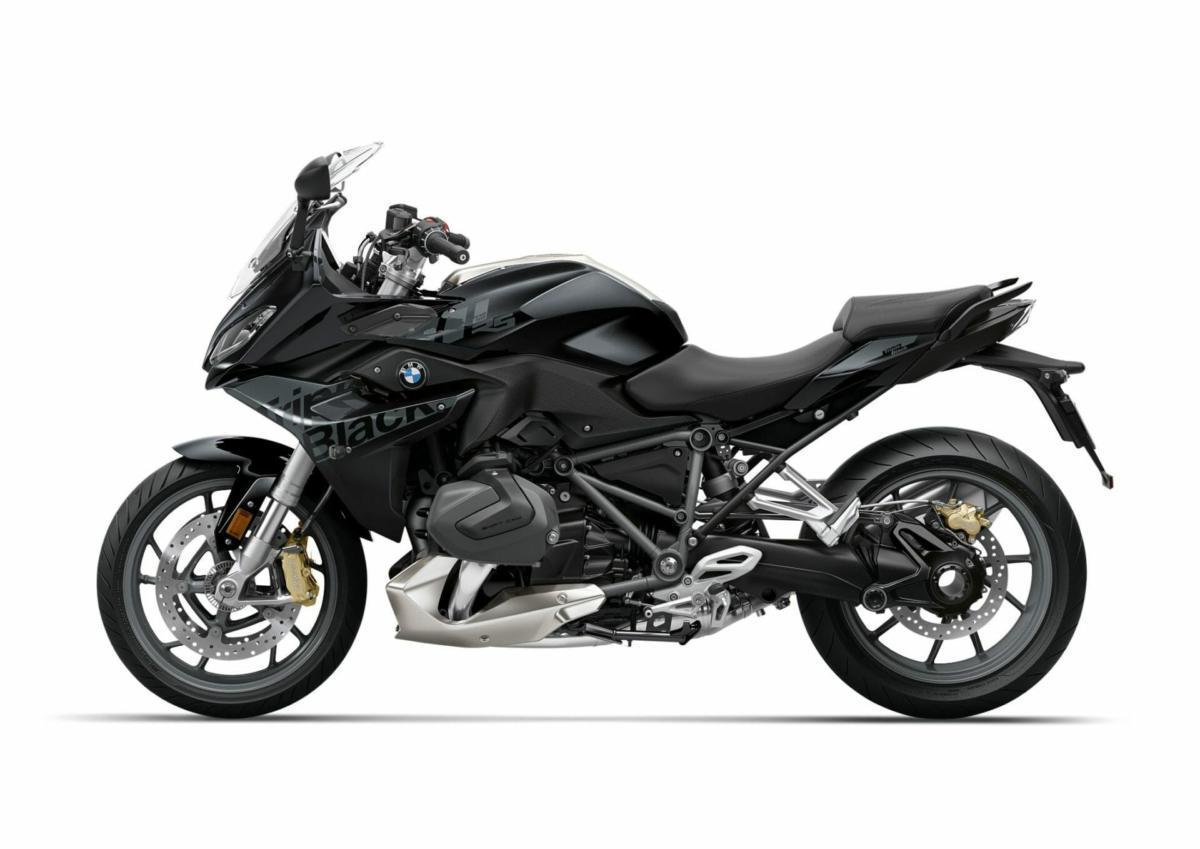

| Colors | Black Storm Metallic, Ice Grey, Hockenheim Silver Metallic |
| A2 Compatible | No |
Strengths & Weaknesses
Strengths
- Powerful ShiftCam engine, sporty ergonomics, good weather protection, shaft drive
Weaknesses
- End-of-line model (successor R 1300 RS), optional extras expensive
