Honda CBR1000RR-R Fireblade SP McGuinness 2023

2023 Official

Honda · SuperSportler · John McGuinness 100th TT Start

218 hp / 160.3 kW

Power

113 Nm

Torque

201 kg

Weight

1,000 ccm

Displacement

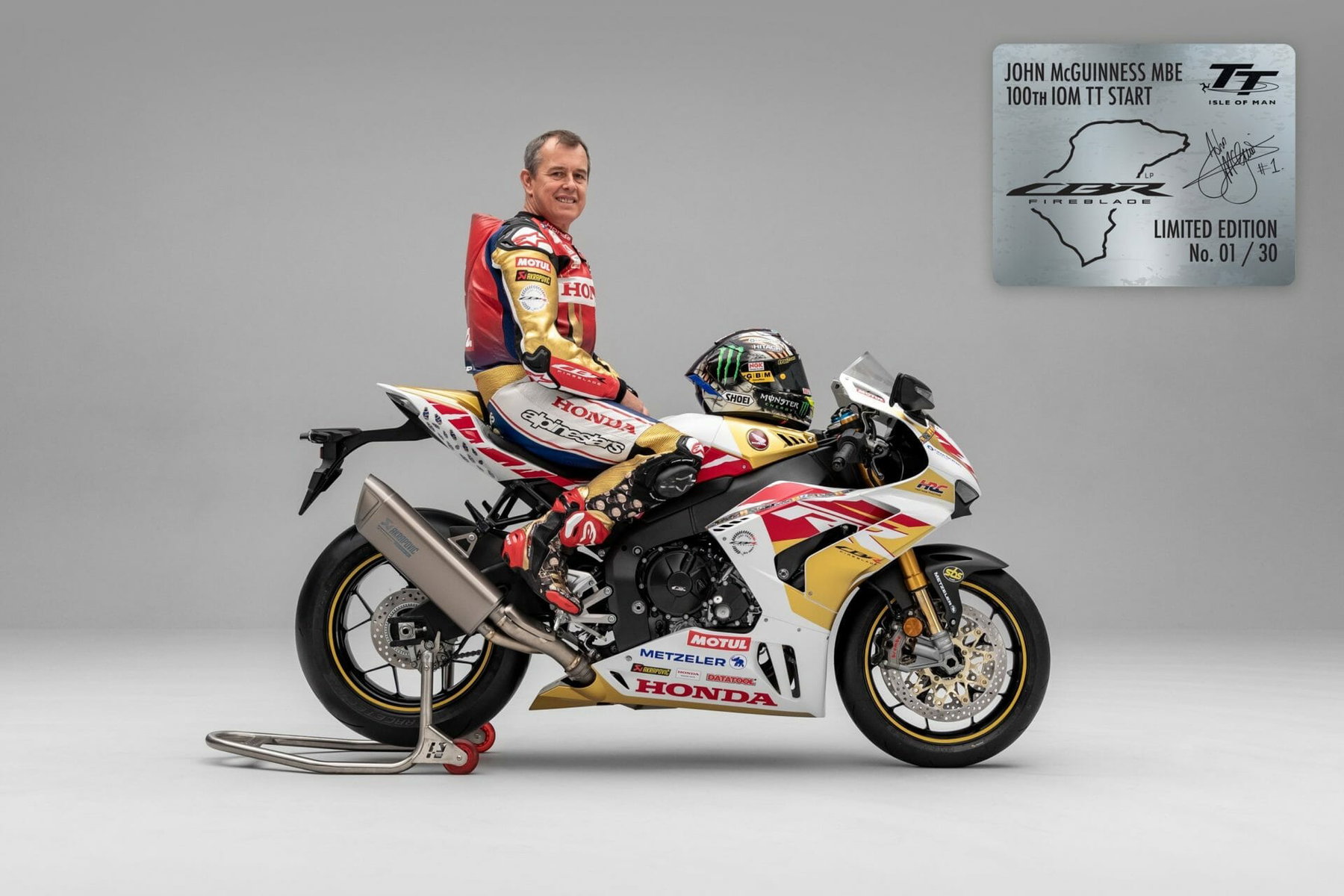

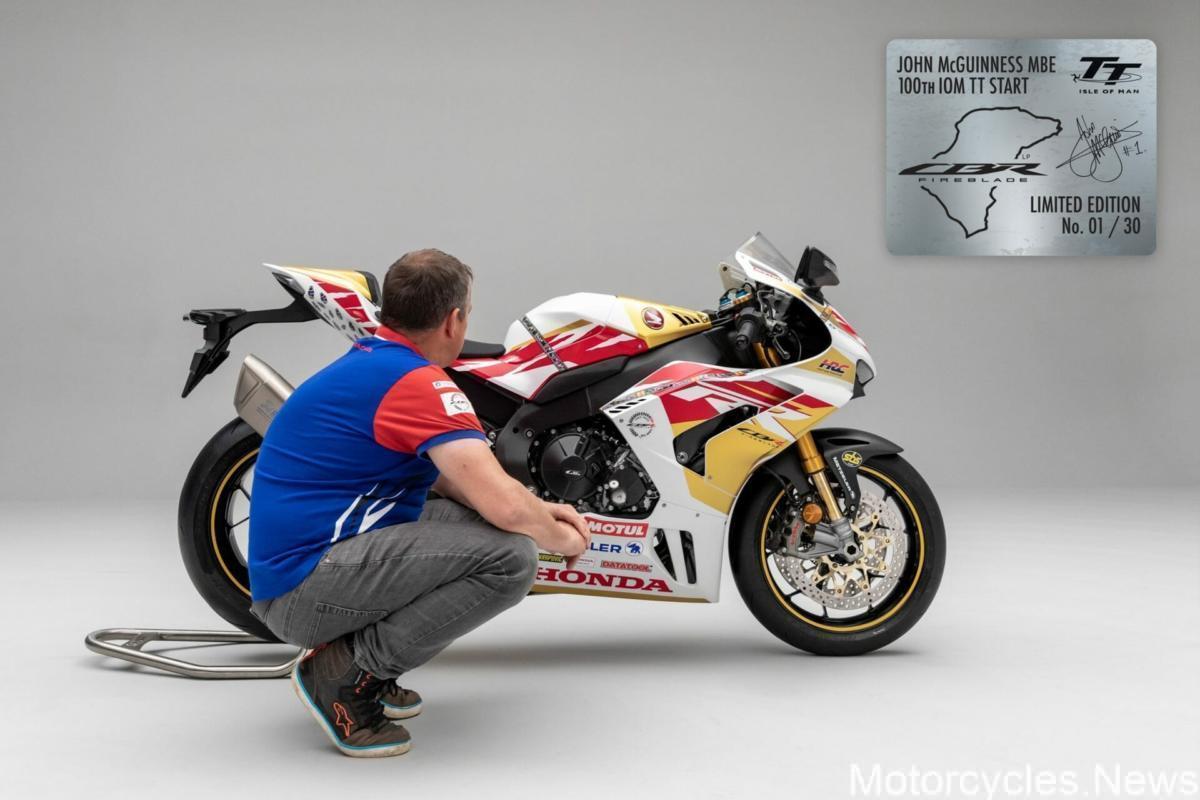

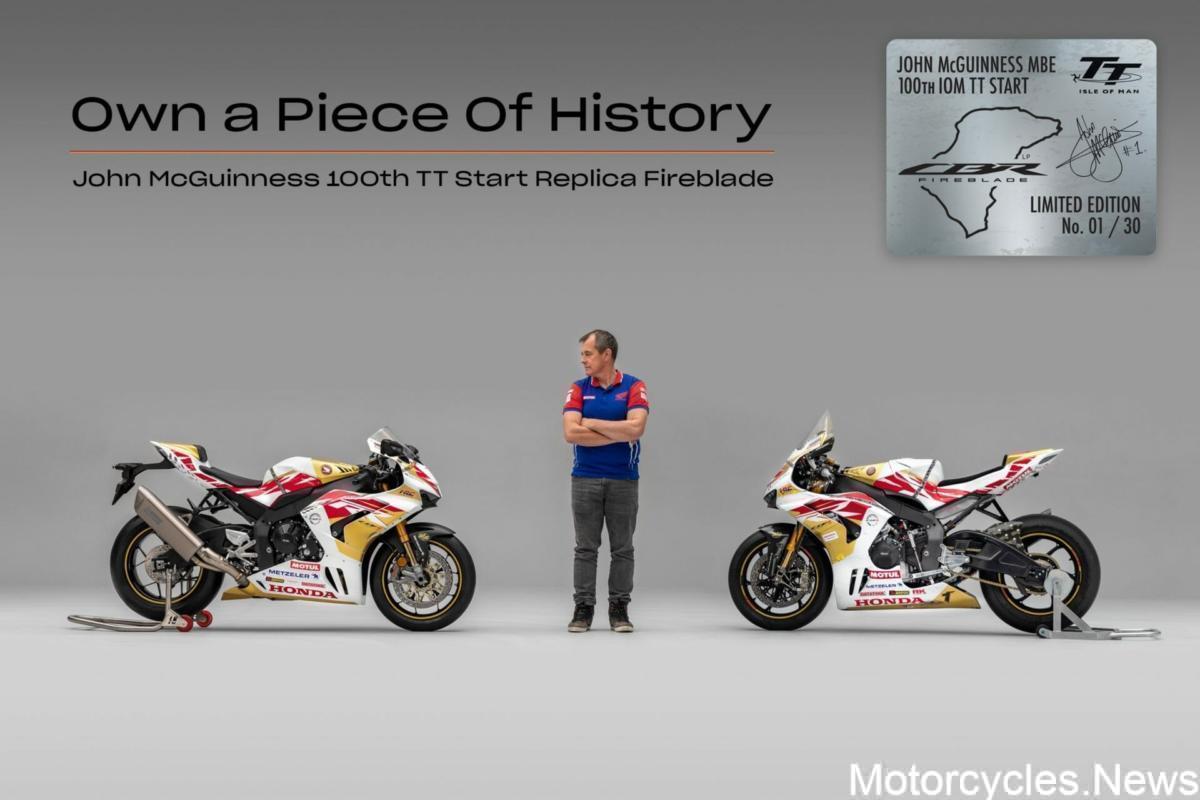

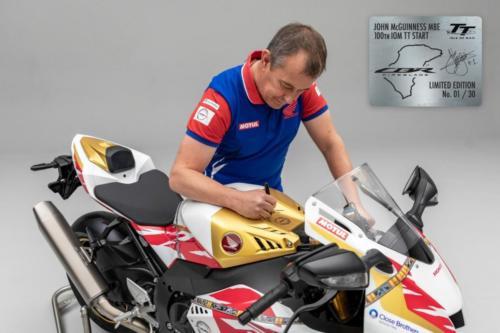

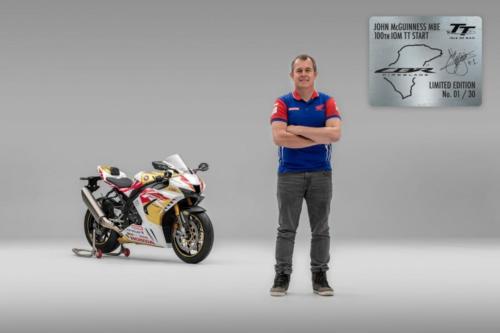

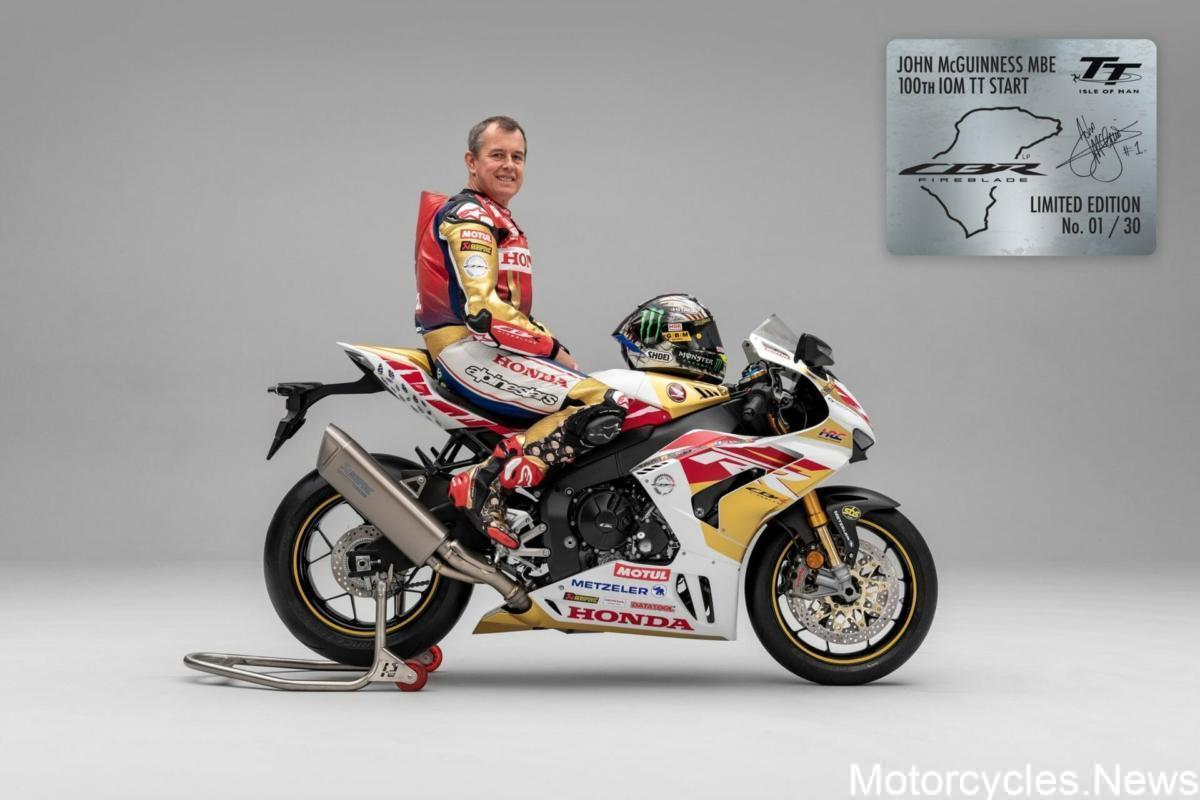

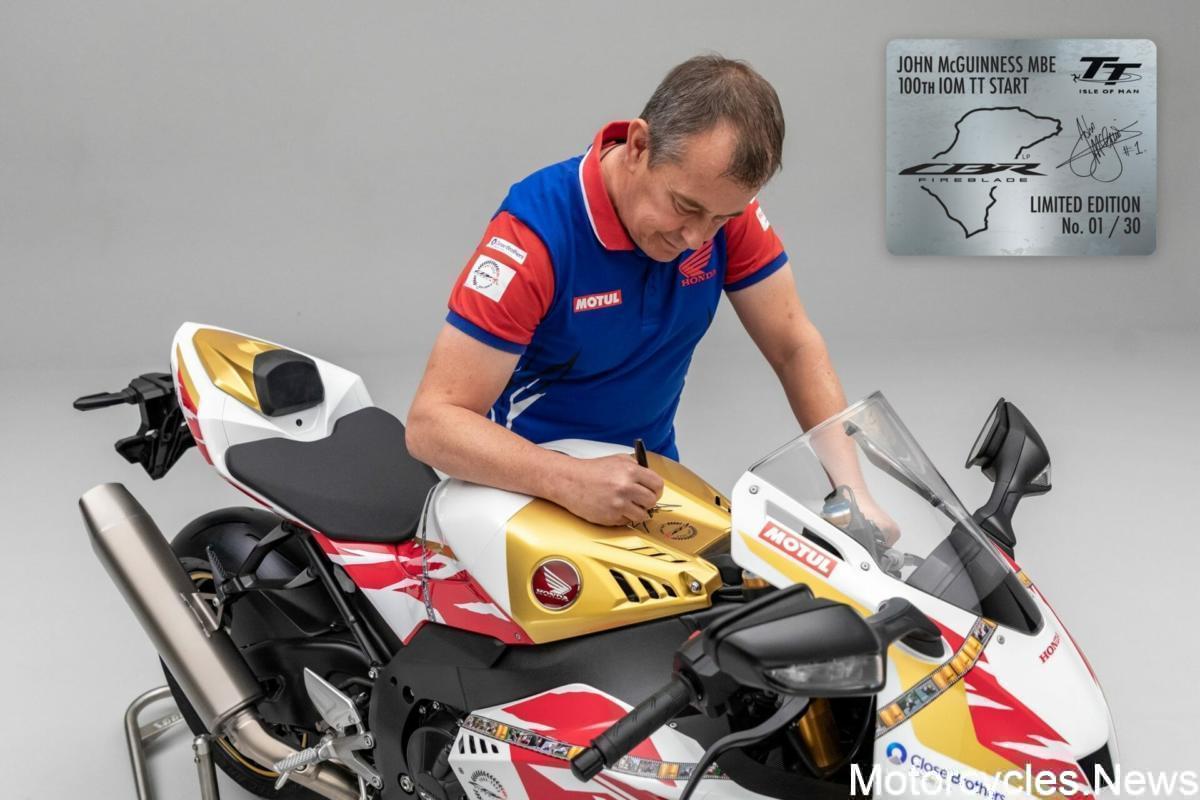

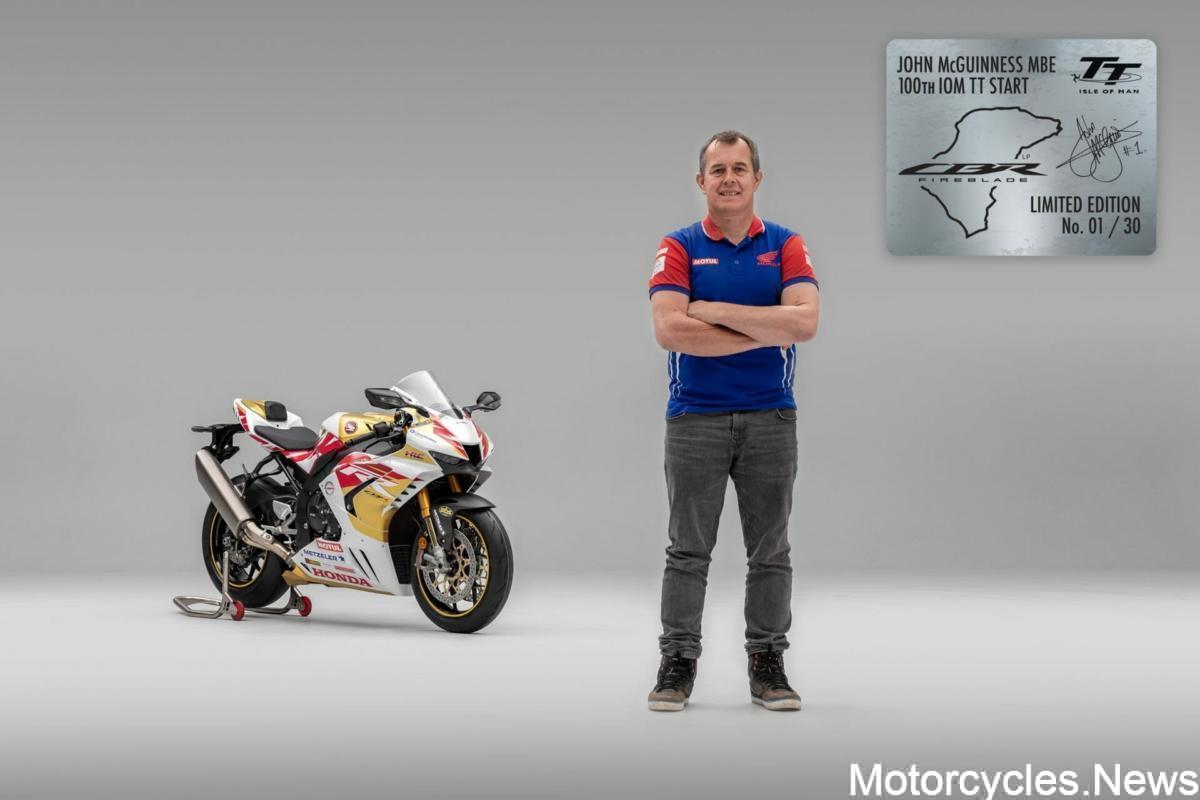

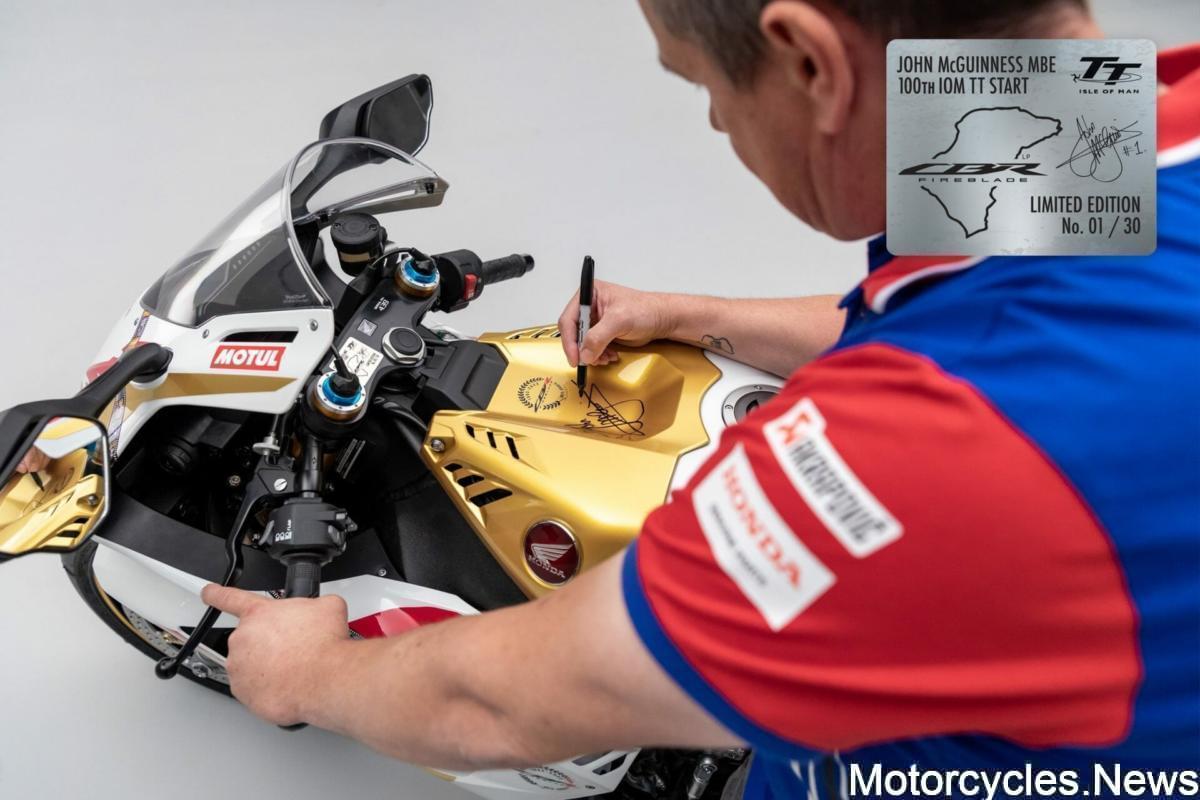

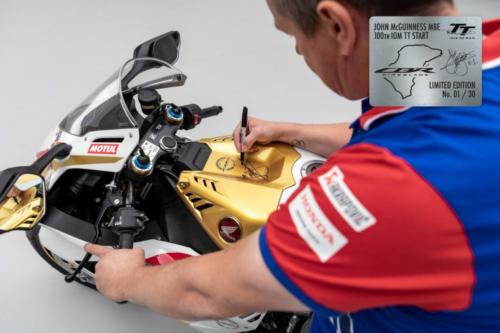

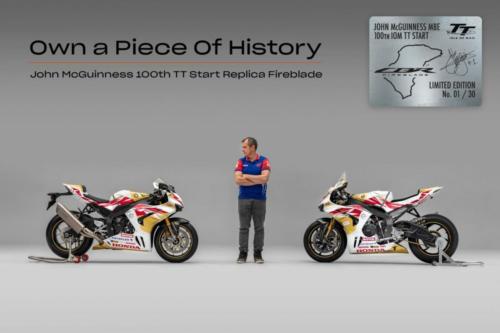

The Honda CBR1000RR-R Fireblade SP John McGuinness Edition celebrates his 100th TT start: limited to 30 units worldwide, tricolor livery in white/red/gold, signed airbox cover, carbon fiber parts, TT windscreen. Base: 218 HP Fireblade SP with Öhlins S-EC and Brembo Stylema.

Model Details

Limited Edition	Yes
Edition Count	30

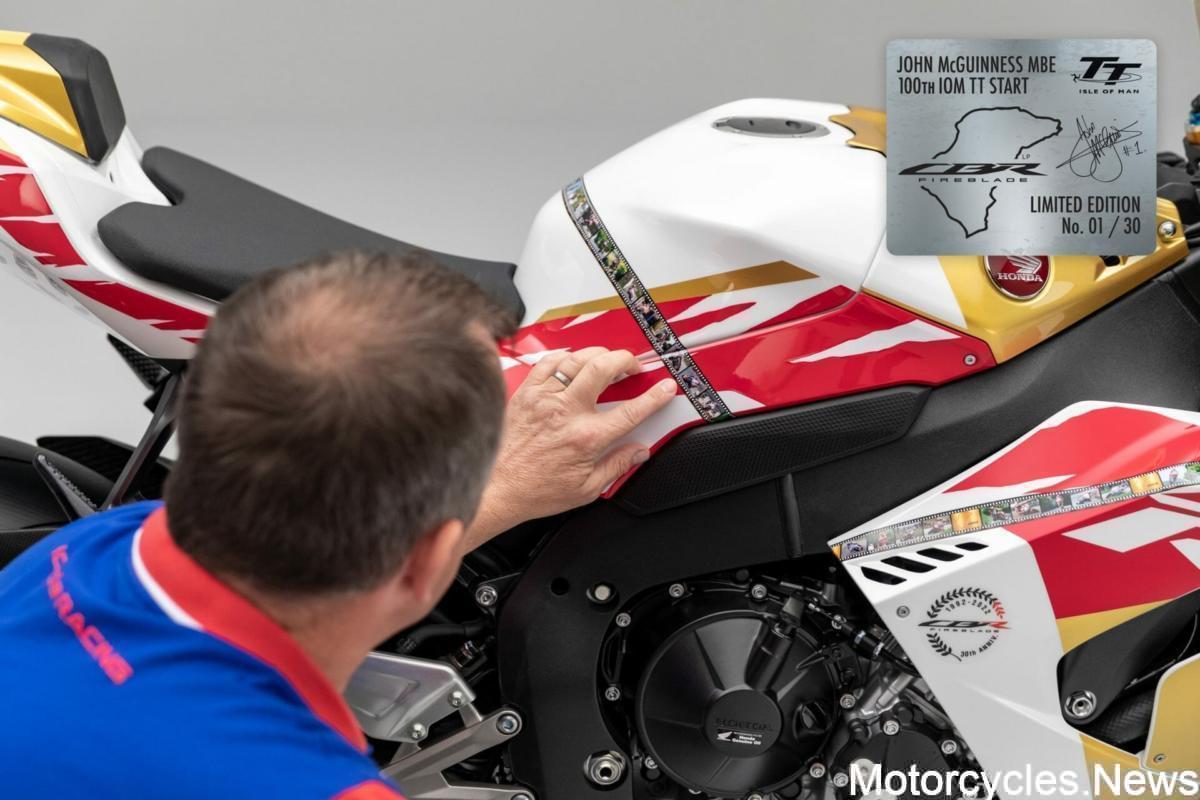

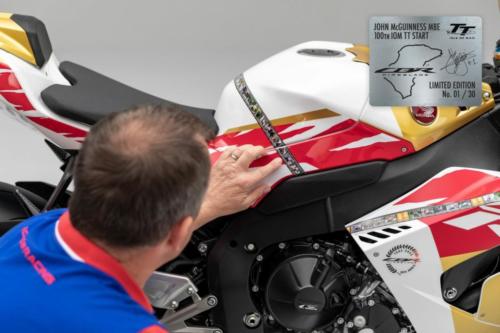

Special Edition Note	Feiert John McGuinness' 100. Isle of Man TT Start. Tricolor-Lackierung in Weiß, Rot und Gold, goldener Sitzhöcker, signierter Airbox-Cover, Filmstreifen mit allen Rennstarts, TT-Windschild, Carbon-Kotflügel.
Lifecycle	current

Model Info

Vehicle Type	street
Target Audience	Collectors, supersport enthusiasts, TT fans

Engine & Performance

Engine Type	Inline-four, liquid-cooled, DOHC, 4 valves/cyl.
Cylinders	4
Displacement	1,000 ccm
Bore x Stroke	81,0 x 48,5 mm
Compression Ratio	13,4:1
Power	218 hp
Power (kW)	160.3 kW
Power at RPM	14,500 rpm
Torque	113 Nm
Torque at RPM	12,500 rpm
Fuel System	PGM-FI fuel injection, ride-by-wire
Cooling	Liquid cooling
Emission Standard	Euro 5

Drivetrain

Transmission	6-speed
Final Drive	Chain
Clutch	Multi-plate wet clutch, Assist & Slipper

Performance

Power-to-Weight

1.1 hp/kg

Chassis & Suspension

Frame Type	Aluminum bridge frame
Front Fork	USD telescopic fork
Fork Brand	Öhlins
Fork Diameter	43 mm
Front Travel	125 mm
Front Suspension Adj.	Preload, rebound and compression damping (electronic S-EC)
Rear Shock	Central monoshock (Pro-Link, single-sided swingarm)
Shock Brand	Öhlins
Rear Travel	122 mm
Rear Suspension Adj.	Preload, rebound and compression damping (electronic S-EC)
Electronic Suspension	Yes
E-Suspension Type	Öhlins S-EC 2.0

Brakes

Front Disc Count	2
Front Disc Size	330 mm
Front Caliper	4-piston radial (Brembo Stylema)
Front Brake Brand	Brembo
Rear Disc Size	220 mm
Rear Caliper	1-piston
ABS	Yes
ABS Type	Cornering ABS (IMU-gestützt)
IMU	Yes
IMU Type	6-Achsen

Dimensions & Weight

Seat Height	831 mm
Wheelbase	1,455 mm
Rake	24 °
Trail	102 mm
Wet Weight	201 kg
Fuel Capacity	16.1 L

Tires & Wheels

Front Tire	120/70 ZR17
Rear Tire	200/55 ZR17

Electronics & Rider Aids

Riding Modes	Yes
Mode Count	5
Mode Names	Mode 1, Mode 2, Mode 3, Mode 4, User
Custom Modes	Yes
Traction Control	Yes
TC Levels	9
TC IMU-based	Yes
TC Deactivatable	Yes
Wheelie Control	Yes
Wheelie Levels	3
Slide Control	No
Launch Control	Yes
Engine Brake Control	Yes
Cruise Control	No
Quickshifter	Standard
QS Direction	Up & Down
